WEEK 08: TRANSLATE THE DETAIL

FRIDAY 10.18_TRANSLATE THE DETAIL(Due Monday 10.21)

• 2:00pm Kate
• 2:20pm Sydney
• 2:40pm Kayla
• 3:00pm Noah
• 3:20pm Lucien
• 3:40pm Evan
• 4:00pm Becca
• 4:20pm Erica
• 4:40pm Levi

WEDNESDAY 10.16_TRANSLATE THE DETAIL (Due Monday 10.21)

“Draw” three (3) section details showing the connection between the old Agricultural Heritage Museum and the new addition.

1. Pick the section or sections of the intervention (section 01, section 02, or section 03). You may use all three sections or just one.

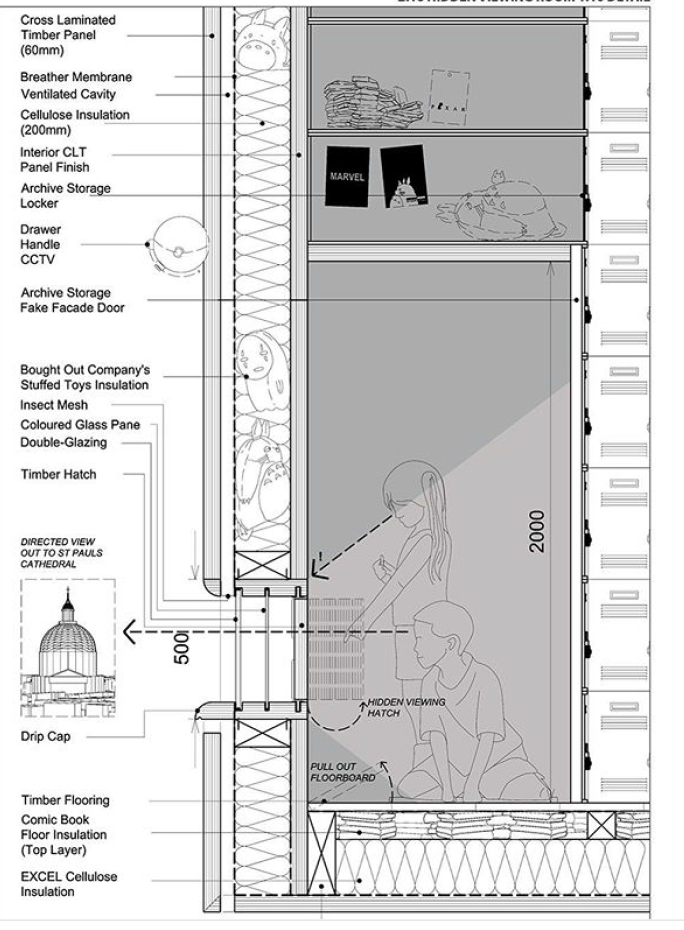

2. “Draw” three (3) section details using model and detail lines only. Use the examples I provided in studio (Detail Magazine and books inside the yellow cart). An example of an excellent set of details “drawn” in Revit from ARCH 551 FA19 are included below in jpeg and pdf format.
3. Save a new revit file as 191021_Section Details. Upload to 02_The Translation on “Box”.
4. YOU ARE WELCOME TO ATTEMPT MORE THAN THREE (3) DETAILS!
